DAY 67 - 스프링 프레임워크 HOMEWORK - 파일 DB 저장 / 이미지 출력 (2024.10.11)

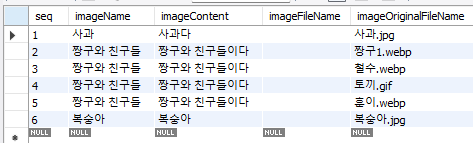

파일 DB 저장

UserUploadController.java

@Autowired
private UserUploadService userUploadService;

@Controller
@RequestMapping(value="user")
public class UserUploadController {
	@Autowired
	private UserUploadService userUploadService;

---

UserUploadService.java -- 인터페이스

package user.service;

public interface UserUploadService {

}

---

UserUploadServiceImpl.java

@Service

package user.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import user.service.UserUploadService;

@Service
public class UserUploadServiceImpl implements UserUploadService {

}

---

root-context.xml -- 이미 빈 설정 되어있다 !!

<context:component-scan base-package="user.service.impl" />

---

UserUploadController.java

    //DB
    userUploadService.upload(imageUploadList);

---

UserUploadService.java

public void upload(List<UserUploadDTO> imageUploadList);

package user.service;

import java.util.List;

import user.bean.UserUploadDTO;

public interface UserUploadService {

	public void upload(List<UserUploadDTO> imageUploadList);

}

---

UserUploadServiceImpl.java

@Autowired
private UserUploadDAO userUploadDAO;



@Override
public void upload(List<UserUploadDTO> imageUploadList) {
          userUploadDAO.write(imageUploadList);
}

package user.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import user.bean.UserUploadDTO;
import user.dao.UserUploadDAO;
import user.service.UserUploadService;

@Service
public class UserUploadServiceImpl implements UserUploadService {
	@Autowired
	private UserUploadDAO userUploadDAO;

	@Override
	public void upload(List<UserUploadDTO> imageUploadList) {
		userUploadDAO.upload(imageUploadList);
	}

}

---

UserUploadDAO.java -- 인터페이스 DAO의 구현객체를 생성하지 않는다.

@Mapper

package user.dao;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import user.bean.UserUploadDTO;

@Mapper
public interface UserUploadDAO {

	void upload(List<UserUploadDTO> imageUploadList);

}

---

SpringConfiguration.java

@MapperScan("user.dao")

@MapperScan("user.dao")
public class SpringConfiguration {



위 아래 둘 중 하나만 설정하면 된다 !!



root-context.xml

<context:component-scan base-package="user.dao.impl" />

---

userUploadMapper.xml

<mapper namespace="user.dao.UserUploadDAO">

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
 PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
 "https://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="user.dao.UserUploadDAO">
</mapper>

---

mybatis-config.xml

<typeAlias type="user.bean.UserUploadDTO" alias="upload"/>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
 PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
 "https://mybatis.org/dtd/mybatis-3-config.dtd">
 <configuration>
 	<typeAliases>
 		<typeAlias type="user.bean.UserDTO" alias="user"/>
 		<typeAlias type="user.bean.UserUploadDTO" alias="upload"/>
 	</typeAliases>
 </configuration>



applicationContext.xml 필요없음 지워버리기

mybatis-config.xml ====> 제거



<!--   <typeAliases>
  <typeAlias type="user.bean.UserDTO" alias="user"/>
  <typeAlias type="user.bean.UserUploadDTO" alias="upload"/>
  </typeAliases> --> 주석걸기

---

SpringConfiguration.java

sqlSessionFactoryBean.setTypeAliasesPackage("user.bean");

user.bean.UserDTO => userDTO 이런식으로 된다 !!



sqlSessionFactoryBean.setTypeAliasesPackage("*.bean"); 이렇게 잡아도된다 !!

	@Bean
	public SqlSessionFactory sqlSessionFactory() throws Exception {
		SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
		sqlSessionFactoryBean.setDataSource(dataSource());
		sqlSessionFactoryBean.setConfigLocation(new ClassPathResource("spring/mybatis-config.xml"));

		sqlSessionFactoryBean.setMapperLocations(new ClassPathResource("mapper/userMapper.xml"));

		//sqlSessionFactoryBean.setTypeAliasesPackage("user.bean");
		sqlSessionFactoryBean.setTypeAliasesPackage("*.bean");

		return sqlSessionFactoryBean.getObject(); // SqlSessionFactory 변환 역할
	}





---

userUploadMapper.xml이 있는지를 알려줘야 한다 !!!

1개면 밑에처럼 적으면 되지만
sqlSessionFactoryBean.setMapperLocations(new ClassPathResource("mapper/userMapper.xml"));



Mapper.xml이 2개 이상일 때는 배열로 잡아줘야 한다.

sqlSessionFactoryBean.setMapperLocations(
                    new ClassPathResource("mapper/userMapper.xml"),
                    new ClassPathResource("mapper/userUploadMapper.xml"));

	@Bean
	public SqlSessionFactory sqlSessionFactory() throws Exception {
		SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
		sqlSessionFactoryBean.setDataSource(dataSource());
		sqlSessionFactoryBean.setConfigLocation(new ClassPathResource("spring/mybatis-config.xml"));

		//1개
		//sqlSessionFactoryBean.setMapperLocations(new ClassPathResource("mapper/userMapper.xml"));

		//Mapper.xml이 2개 이상일 때
		sqlSessionFactoryBean.setMapperLocations(
				new ClassPathResource("mapper/userMapper.xml"),
				new ClassPathResource("mapper/userUploadMapper.xml"));

		//sqlSessionFactoryBean.setTypeAliasesPackage("user.bean");
		sqlSessionFactoryBean.setTypeAliasesPackage("*.bean");

		return sqlSessionFactoryBean.getObject(); // SqlSessionFactory 변환 역할
	}



저렇게 여러번 쓰는 것보다 와일드 카드 쓰는게 더 좋다 !!



import org.springframework.context.ApplicationContext; -- 이거 조심 !



@Autowired
private ApplicationContext context; -- 이렇게 하면 스프링이 준다 !!!



sqlSessionFactoryBean.setMapperLocations(

               context.getResources("classpath:mapper/*Mapper.xml"));

	@Bean
	public SqlSessionFactory sqlSessionFactory() throws Exception {
		SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
		sqlSessionFactoryBean.setDataSource(dataSource());
		sqlSessionFactoryBean.setConfigLocation(new ClassPathResource("spring/mybatis-config.xml"));

		//1개
		//sqlSessionFactoryBean.setMapperLocations(new ClassPathResource("mapper/userMapper.xml"));

		//Mapper.xml이 2개 이상일 때
		/*
		sqlSessionFactoryBean.setMapperLocations(
				new ClassPathResource("mapper/userMapper.xml"),
				new ClassPathResource("mapper/userUploadMapper.xml"));
		*/

		sqlSessionFactoryBean.setMapperLocations(context.getResources("classpath:mapper/*Mapper.xml"));

		//sqlSessionFactoryBean.setTypeAliasesPackage("user.bean");
		sqlSessionFactoryBean.setTypeAliasesPackage("*.bean");

		return sqlSessionFactoryBean.getObject(); // SqlSessionFactory 변환 역할
	}

---

userMapper.xml

resultType="userDTO" 위에서 TypeAliase 설정으로 인해 UserDTO가 userDTO로 설정되기 때문에 다 다시 바꿔줘야한다 !!!

<mapper namespace="user.dao.UserDAO">
	<!-- 중복 아이디 체크 -->
    <select id="getExistId" parameterType="String" resultType="userDTO">
        SELECT * FROM usertable WHERE id = #{id};
    </select>

---

UserUploadServiceImpl.java

@Override
public void upload(List<UserUploadDTO> imageUploadList) {
          userUploadDAO.upload(imageUploadList);
}

package user.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import user.bean.UserUploadDTO;
import user.dao.UserUploadDAO;
import user.service.UserUploadService;

@Service
public class UserUploadServiceImpl implements UserUploadService {
	@Autowired
	private UserUploadDAO userUploadDAO;

	@Override
	public void upload(List<UserUploadDTO> imageUploadList) {
		userUploadDAO.upload(imageUploadList);
	}

}

---

UserUploadDAO.java

public void upload(List<UserUploadDTO> imageUploadList);

package user.dao;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import user.bean.UserUploadDTO;

@Mapper
public interface UserUploadDAO {

	public void upload(List<UserUploadDTO> imageUploadList);

}

---

userUploadMapper.xml

SQL문을 실행할 때, 넘어오는 파라메터 타입이 List일 경우
foreach 태그의 collection 속성에 사용할 수 있는 이름은 list 또는 collection이 가능하다.

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
 PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
 "https://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="user.dao.UserUploadDAO">
	<insert id="upload" parameterType="list">
	    INSERT INTO userUpload (imageName, imageContent, imageFileName, imageOriginalFileName)
	    VALUES
	    <foreach collection="list" item="dto" separator=",">
	        (#{dto.imageName}, #{dto.imageContent}, #{dto.imageFileName}, #{dto.imageOriginalFileName})
	    </foreach>
	</insert>

</mapper>

---

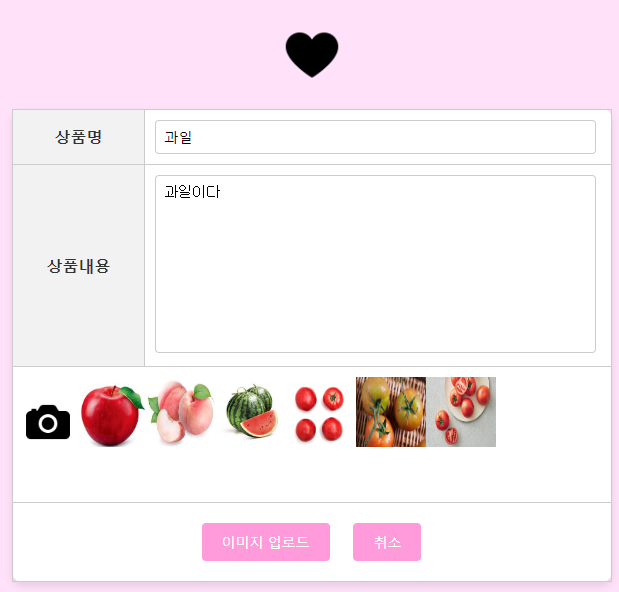

uploadAJax.js

location.href = "/spring2/user/uploadList";

$(function(){
	$('#uploadAJaxBtn').click(function(){
		let formData = new FormData($('#uploadAJaxForm')[0]);

		$.ajax({
			type: 'post',
			enctype: 'multipart/form-data',
			processData: false,
			contentType: false,
			url: '/spring2/user/upload',
			data: formData,
			success: function(data){
				//alert(data);
				location.href = "/spring2/user/uploadList";
			},
			error: function(e){
				console.log(e);
			}
		});//$.ajax
	});
});

---

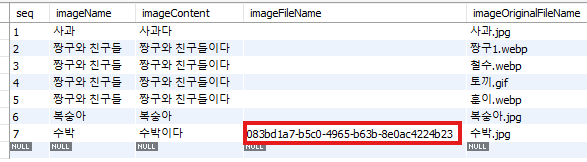

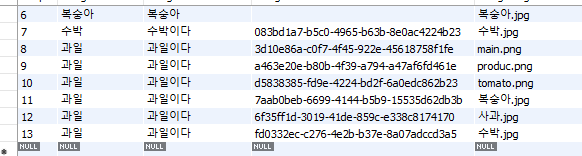

UUID

UserUploadController.java

String imageFileName;



for(MultipartFile img: list) {
         imageFileName = UUID.randomUUID().toString();



dto.setImageFileName(imageFileName);

	//1개 또는 여러개(드래그해서 넘어오는 경우)
	//파일명에 한글 또는 공백이 있어도 업로드가 된다.
	@ResponseBody
	@RequestMapping(value = "upload",  method = RequestMethod.POST,  produces = "text/html; charset=UTF-8")
	public String upload(@ModelAttribute UserUploadDTO userUploadDTO,
						 @RequestParam("img[]") List<MultipartFile> list,
						 HttpSession session) {
		//실제폴더
		String filePath = session.getServletContext().getRealPath("WEB-INF/storage");
		System.out.println("실제 폴더 = " + filePath);

		String imageFileName;
		String imageOriginalFileName;
		File file;
		String result = "";

		//파일들을 모아서 DB로 보내기
		List<UserUploadDTO> imageUploadList = new ArrayList<>();

		for(MultipartFile img: list) {
			imageFileName = UUID.randomUUID().toString();

			imageOriginalFileName = img.getOriginalFilename();
			file = new File(filePath, imageOriginalFileName);

			try {
				img.transferTo(file);
			} catch (IllegalStateException e) {
				e.printStackTrace();
			} catch (IOException e) {
				e.printStackTrace();
			}


			//try {
				result += "<span>"
						+ "<img src='/spring2/storage/"
						+ imageOriginalFileName
						//+ URLEncoder.encode(imageOriginalFileName, "UTF-8") => 이 방법은 파일명에 공백이 있으면 안된다.
						+ "' width='300' height='300'"
						+ "</span>";
			//} catch (UnsupportedEncodingException e) {
			//	e.printStackTrace();
			//}
			//
			UserUploadDTO dto = new UserUploadDTO();
			dto.setImageName(userUploadDTO.getImageName());
			dto.setImageContent(userUploadDTO.getImageContent());
			dto.setImageFileName(imageFileName);
			dto.setImageOriginalFileName(imageOriginalFileName);

			imageUploadList.add(dto);
		}//for

		//DB
		userUploadService.upload(imageUploadList);

		return result;
	}

---

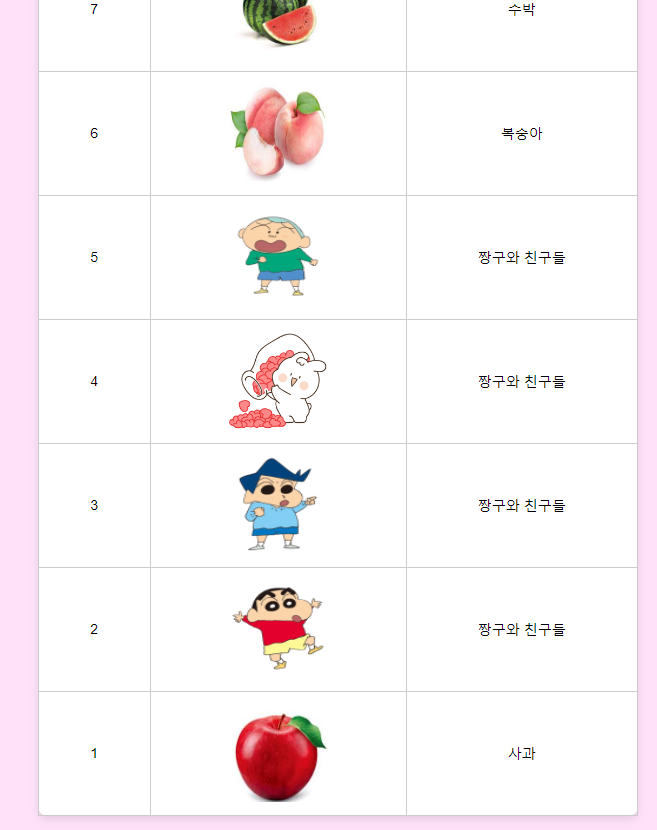

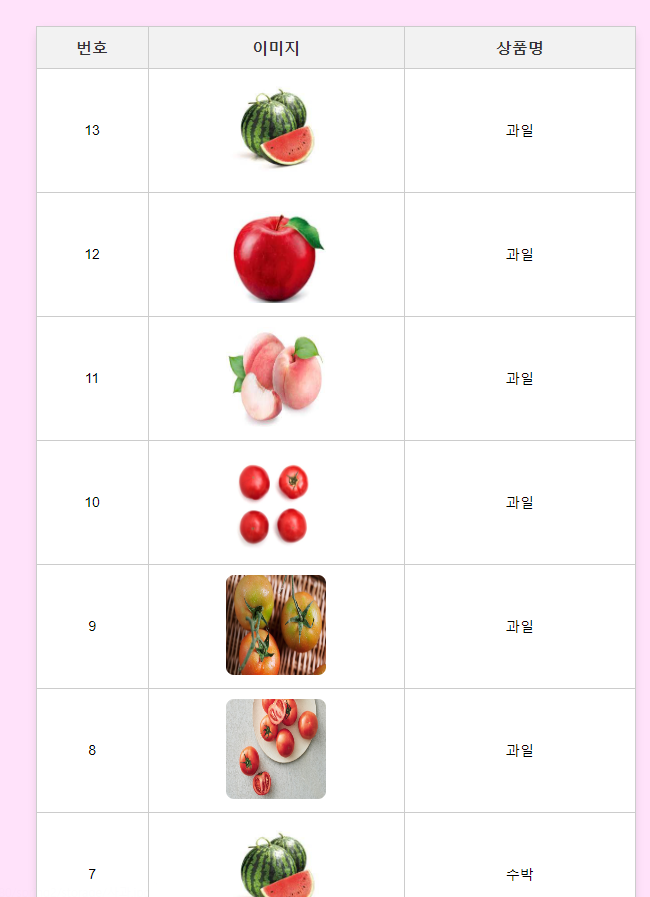

이미지 출력

UserUploadController.java

	@RequestMapping(value = "uploadList", method = RequestMethod.GET)
	public List<UserUploadDTO> uploadList() {
	    return userUploadService.uploadList();
	}

---

UserUploadService.java

public List<UserUploadDTO> uploadList();

package user.service;

import java.util.List;

import user.bean.UserUploadDTO;

public interface UserUploadService {

	public void upload(List<UserUploadDTO> imageUploadList);

	public List<UserUploadDTO> uploadList();

}

---

UserUploadServiceImpl.java

@Override
public List<UserUploadDTO> uploadList() {
       return userUploadDAO.uploadList();
}

package user.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import user.bean.UserUploadDTO;
import user.dao.UserUploadDAO;
import user.service.UserUploadService;

@Service
public class UserUploadServiceImpl implements UserUploadService {
	@Autowired
	private UserUploadDAO userUploadDAO;

	@Override
	public void upload(List<UserUploadDTO> imageUploadList) {
		userUploadDAO.upload(imageUploadList);
	}

	@Override
	public List<UserUploadDTO> uploadList() {
		return userUploadDAO.uploadList();
	}

}

---

UserUploadDAO.java

List<UserUploadDTO> uploadList();

package user.dao;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import user.bean.UserUploadDTO;

@Mapper
public interface UserUploadDAO {

	public void upload(List<UserUploadDTO> imageUploadList);

	List<UserUploadDTO> uploadList();

}

---

userUploadMapper.xml

	<select id="uploadList" resultType="userUploadDTO">
        SELECT * FROM userUpload order by seq desc
    </select>

---

UserUploadController.java

	@RequestMapping(value = "uploadList", method = RequestMethod.GET)
	public ModelAndView uploadList() {
		List<UserUploadDTO> list = userUploadService.uploadList();

		ModelAndView mav = new ModelAndView();
		mav.addObject("list", list);
		mav.setViewName("/upload/uploadList");
	    return mav;
	}

---

uploadList.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>이미지 리스트</title>
<link rel="stylesheet" href="../css/uploadFormList.css">
</head>
<body>
    <div class="container">
        <table>
            <thead>
                <tr>
                    <th>번호</th>
                    <th>이미지</th>
                    <th>상품명</th>
                </tr>
            </thead>
            <tbody>
                <c:forEach var="userUploadDTO" items="${list}">
                    <tr>
                    	<td>${userUploadDTO.seq}</td>
                        <td>
                            <a href="/spring2/storage/${userUploadDTO.imageOriginalFileName}" target="_blank">
                                <img src="/spring2/storage/${userUploadDTO.imageOriginalFileName}" width="100" height="100" alt="${userUploadDTO.imageName}">
                            </a>
                        </td>
                        <td>${userUploadDTO.imageName}</td>
                    </tr>
                </c:forEach>
            </tbody>
        </table>
    </div>
</body>
</html>



uploadFormList.css

@charset "UTF-8";
body {
    background-color: #FFE2FA;
    font-family: 'Arial', sans-serif;
    margin: 0;
    padding: 0;
    display: flex;
    justify-content: center;
    align-items: center;
    height: 100vh;
    flex-direction: column;
}

table {
    border-collapse: collapse;
    width: 600px;
    background-color: white;
    padding: 20px;
    box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);
    border-radius: 10px;
    margin-bottom: 20px;
    margin-top: 800px;
}

th, td {
    padding: 10px;
    border: 1px solid #CCC;
    text-align: center;
    font-size: 14px;
}

th {
    background-color: #F2F2F2;
    color: #333;
    font-size: 16px;
}

img {
    border-radius: 8px;
    cursor: pointer;
    transition: transform 0.3s;
}

img:hover {
    transform: scale(1.1);
}

---
